APPLICATION
The wall-mounted portable lifting system HM 2430 is intended for clients in wheelchairs with a certain degree of independence, also suitable for clients with a greater degree of disability. It is intended for use by a person with an escort. Allows immobile people to move from wheelchair to bed, toilet. Control is handled by a wired electric remote control.

FUNCTION DESCRIPTION:

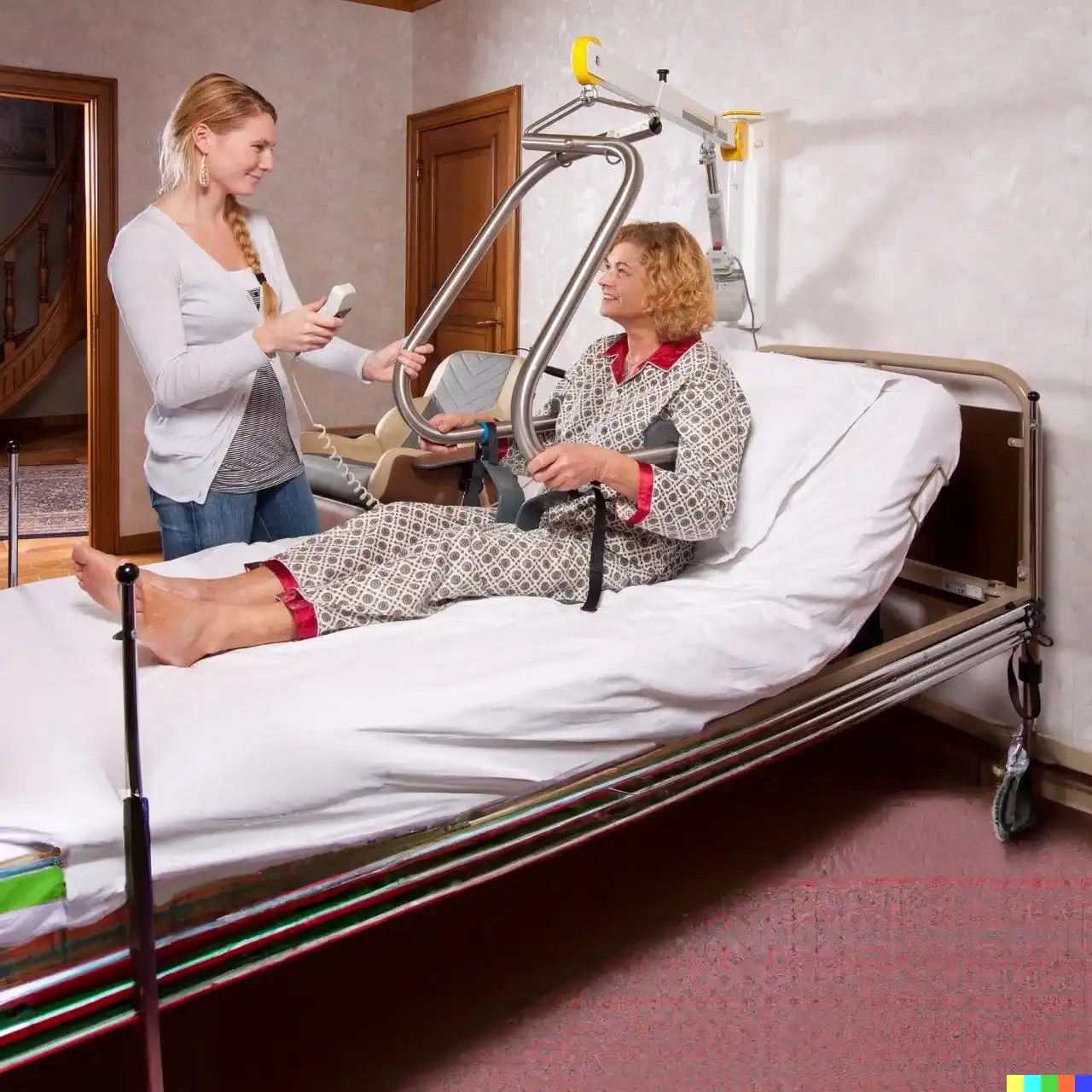

A suitable handle is attached to the lowered lifter, with which the client is caught. It is then picked up using a handle and transported to the desired location. After the transfer is completed, the handle is removed from the client and the jack is turned to the parking position.

OPTIMAL LOCATION:
HM 2430 can be used in several places in the apartment where the original handle is installed, either on the wall or on the stand. It is optimal for family and panel houses, schools, homes for the elderly and rehabilitation institutions.

ADVANTAGES:
The advantages are quiet operation, simple operation, the possibility of arbitrary stops and a cable controller in your hand. All activities are powered by 24 VDC batteries or by means of a 230 VAC transformer. The construction is solid, safe and allows use within the entire apartment, including the bathroom. The client can independently control the descent and ascent without the need for the assistance of another person. In the event of a complete discharge of the accumulator for movement, there is also the possibility of an emergency descent. The elevator is equipped with various restraint systems for disabled citizens, such as a lifting sheet, a seat, a lifting hook, a platform and a stand-up holder.

• Maximum lifted weight 145 kg.

• Length and width of the mounting plate 687 mm x 140 mm.

• Stand - outer cross-section 80 x 50 mm.

• Max. length 3000 mm.

• Extension of the arm from 950 to 1300 mm.

• Lift range from 680 to 980 mm depending on arm extension.

• Weight 16 kg.

• Safety mechanism built-in.

• Cable controller (also usable in water), buttons on the engine.
